OASE Filtoclear 90000 Pond Filter – UVC Pressure Filter for Large Ponds up to 90,000 Litres

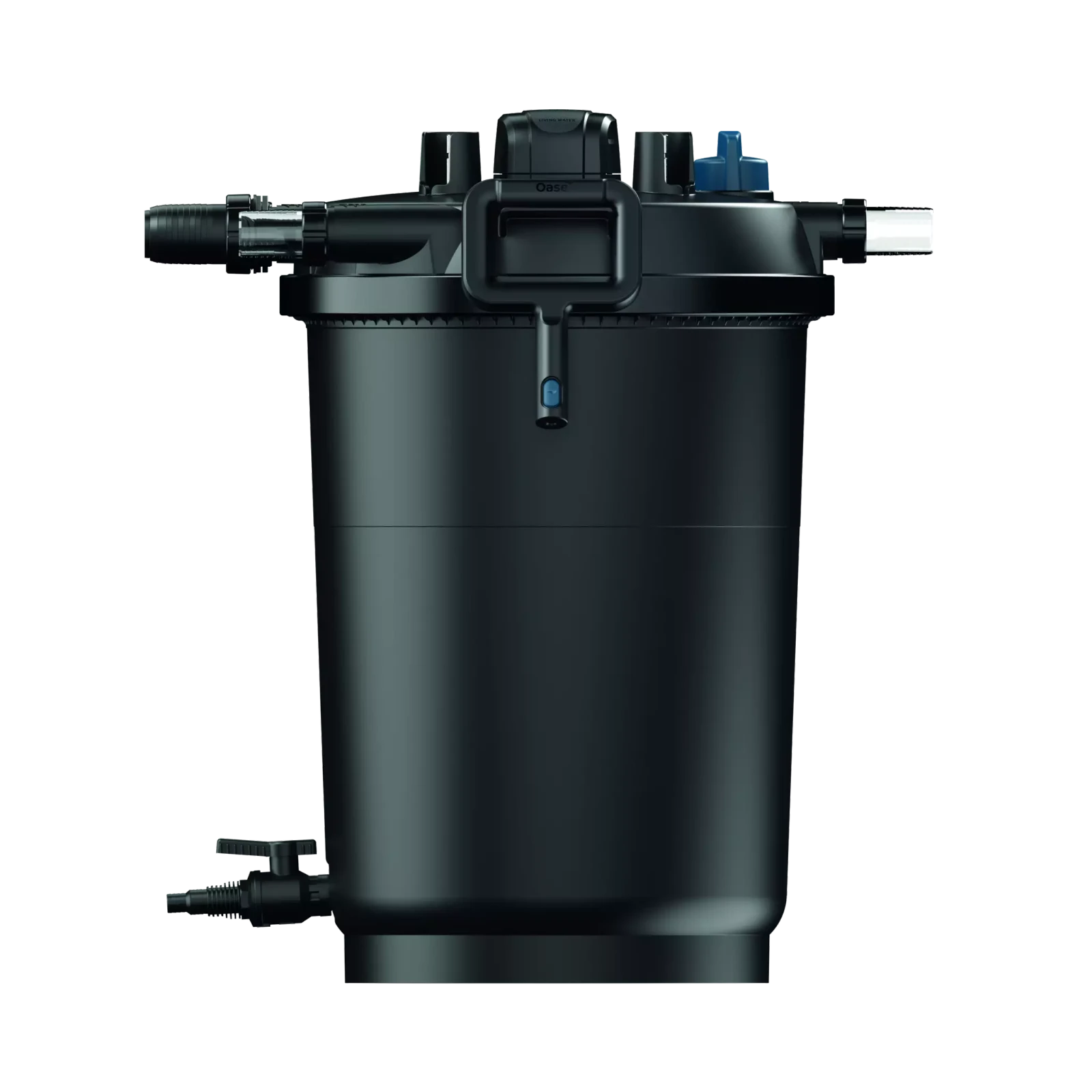

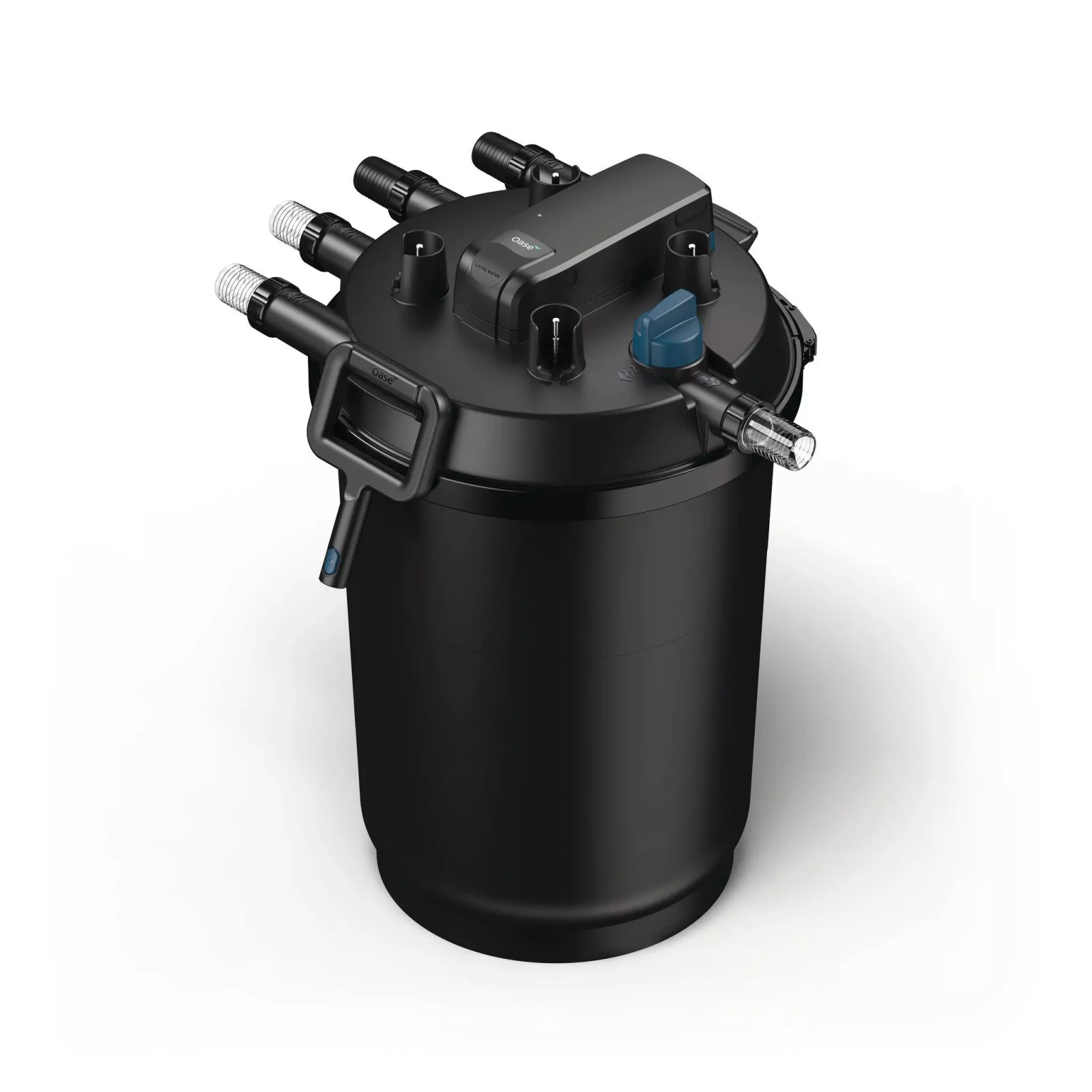

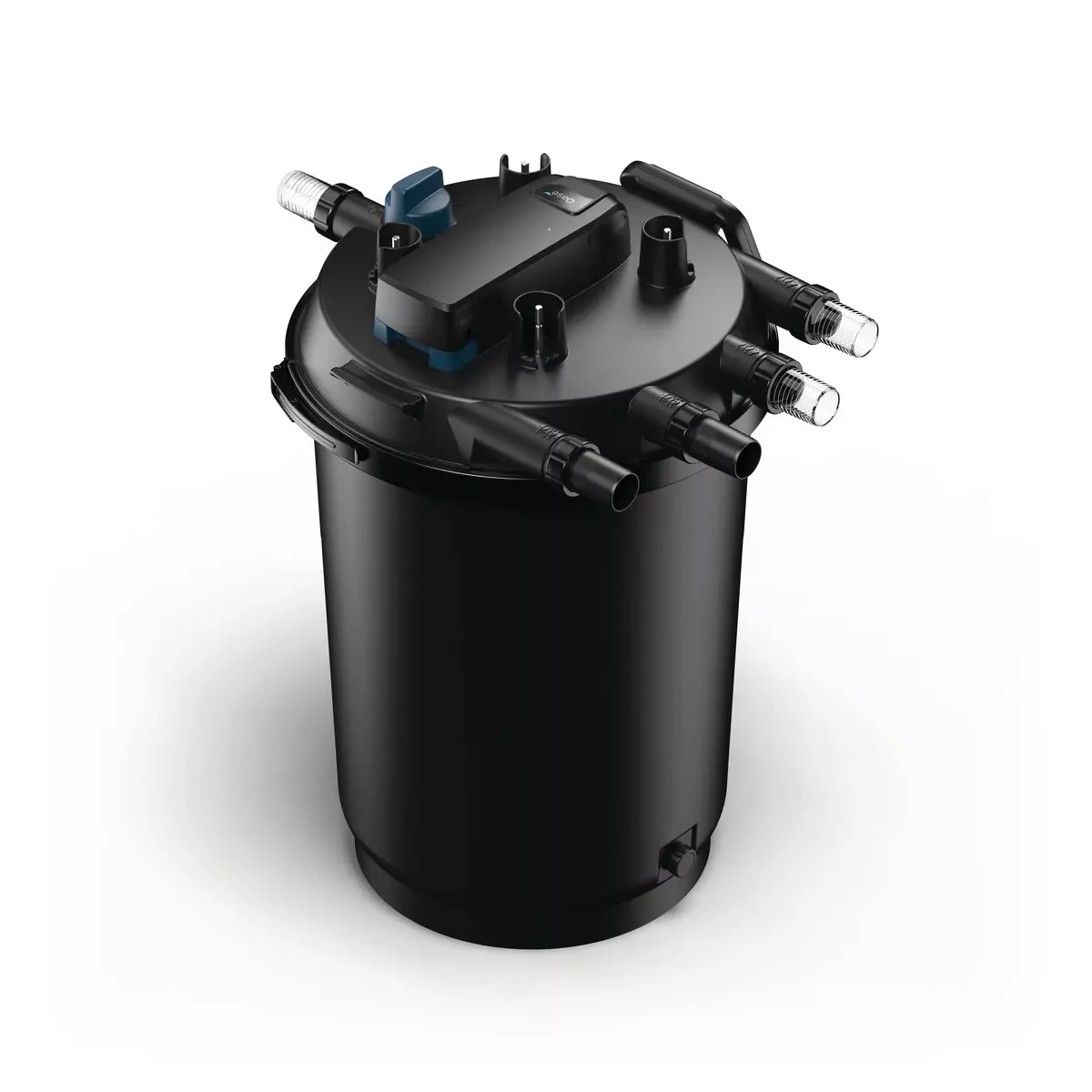

The OASE Filtoclear 90000 is a buried pressure filter with a built-in 120W UVC clarifier, designed for large garden, koi and swimming ponds. It combines mechanical and biological filtration across four grades of filter foam with UVC treatment that tackles green water, algae and germs, so you get clear water from one compact unit.

Two separate inlets let you run up to two pumps at once, and two adjustable return lines suit streams and waterfalls as well as a direct return to the pond. The tough plastic housing can be sunk into the ground to blend into the pond landscape, while still giving easy access for cleaning and servicing.

Features & Benefits

• Combined biological and mechanical filtration with 120W UVC clarification for crystal-clear water.
• Patented cleaning mechanism: pull out and squeeze the filter foams clean using the removable handle.
• Two-way valve sends dirty water to the pond or to waste, such as a garden bed, after cleaning.
• UV lamp can be changed while the filter is running, with no need to remove the quartz sleeve.
• OASE bypass technology maintains water flow and helps prevent clogging.
• Two inlets for up to two pumps and two adjustable outlets for flexible plumbing.

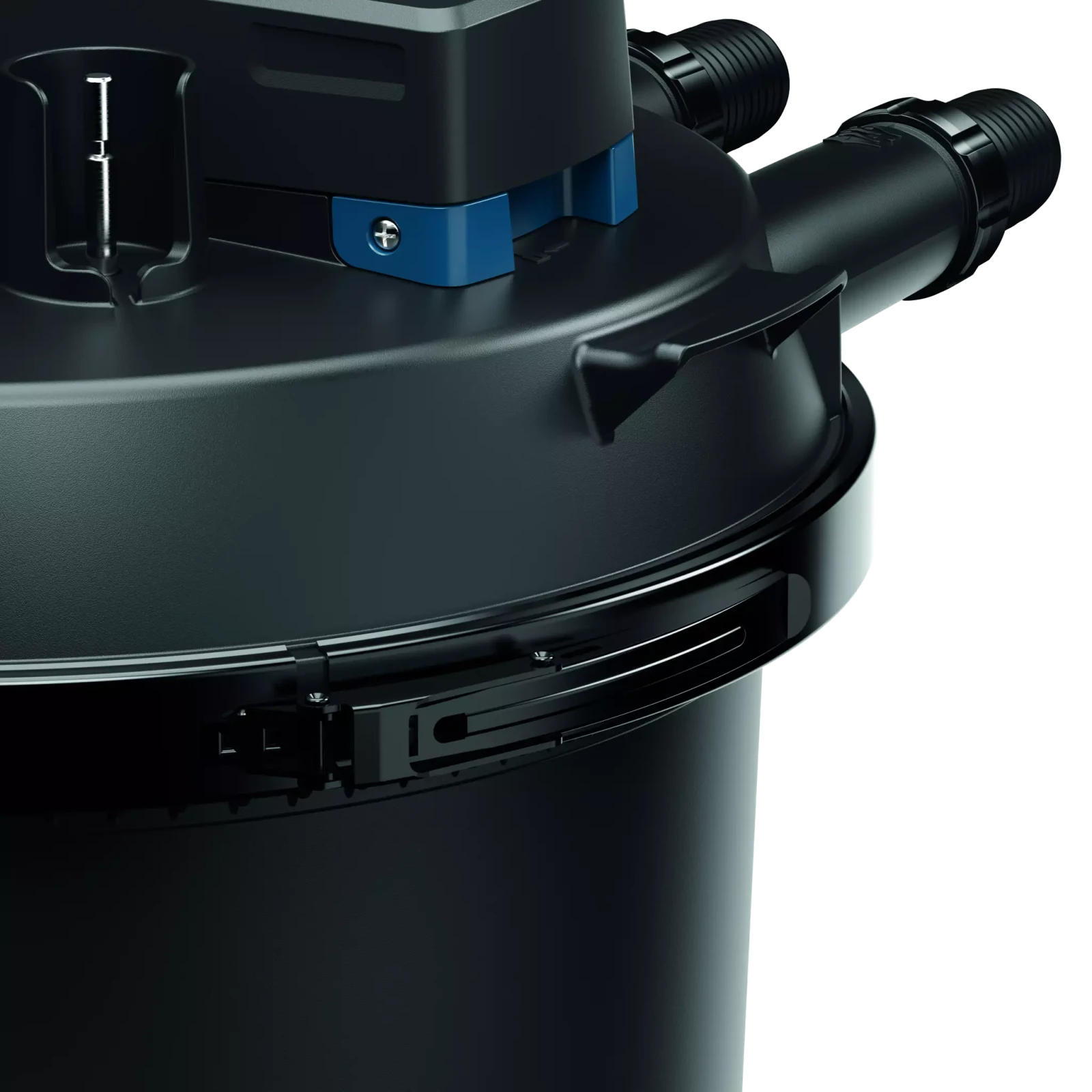

• Strong housing can be buried in the ground, with a metal clamping ring and lever for safe, easy opening.
• Optional stone-look FiltoCap cover helps it blend into the landscape.

Specifications

How to Use

• Pair it with solids-handling pumps up to about 23,000 L/h in total. Two OASE AquaMax Eco Premium 13000 pumps on the two inlets suit most setups. For a long run or a waterfall after the filter, a OASE AquaMax Eco Premium 17000 plus a OASE AquaMax Eco Premium 9000 is another option, depending on the height.
• Position the filter beside the pond, buried if you wish, and connect your pump or pumps to the inlets.
• Connect the outlets to your return lines (50mm flexible pond hose or 50mm PVC suits the 50mm connections), waterfall or stream, and fit the sludge outlet to a drain or waste line.
• Turn on the pump and UVC clarifier. Run the filter continuously for best results.
• To clean, use the handle to pull out and squeeze the foams, then flush the dirty water through the two-way valve to waste.
• Replace the UV lamp as needed. It can be done with the filter running.

Recommended For

• Large garden ponds, koi ponds and swimming ponds.
• Ponds with waterfalls or streams that need a pressurised return.
• Pond keepers wanting UVC and biological filtration in one easy-to-service unit.

Looking after your Filtoclear? We stock genuine OASE Filtoclear replacement foam sets, UV globes and other OASE filter spare parts. Setting up a smaller pond? See the OASE Filtoclear 5000 Kit.
