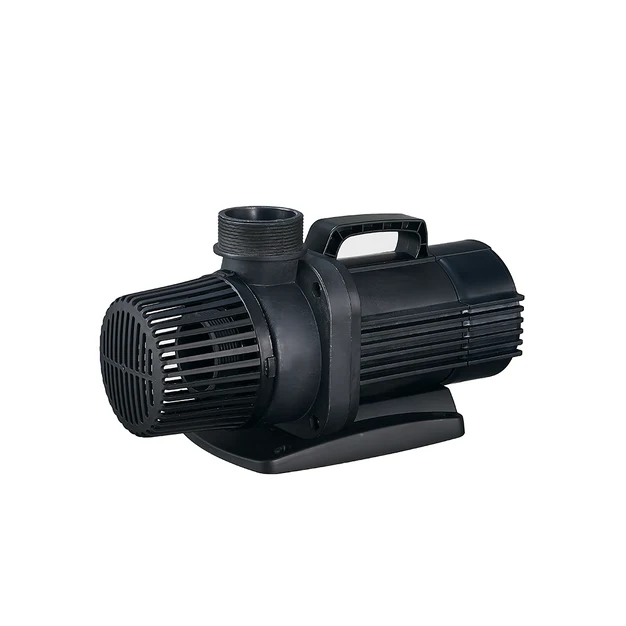

The Aquascape Australia 20000 12V Low Voltage Pump is purpose-built for smaller recreation ponds and natural swimming pools where higher voltage power sources are prohibited by law. Running on just 12V, it delivers a powerful flow rate of 20,000 litres per hour while consuming significantly less energy than traditional pond pumps. Quiet, reliable, and safe for use in both fresh and salt water, it is an ideal choice for pond owners who need performance without compromise.

Key Features & Benefits

  • 12V low voltage operation, safe for use where 24V or 240V power is not permitted
  • Advanced frequency conversion technology for efficient, energy-saving performance
  • Up to 65% more energy efficient than conventional pond pumps
  • Ultra quiet operation for a peaceful outdoor environment
  • Suitable for both freshwater and saltwater use, copper-free design
  • IC electronic detection with automatic dry-run protection
  • Wear-resistant ceramic shaft for long service life
  • 2-year warranty included

Specifications

Specification Details
Model ASA-20000LV
Voltage 12V low voltage
Power Consumption 160W
Flow Rate 20,000 L/h

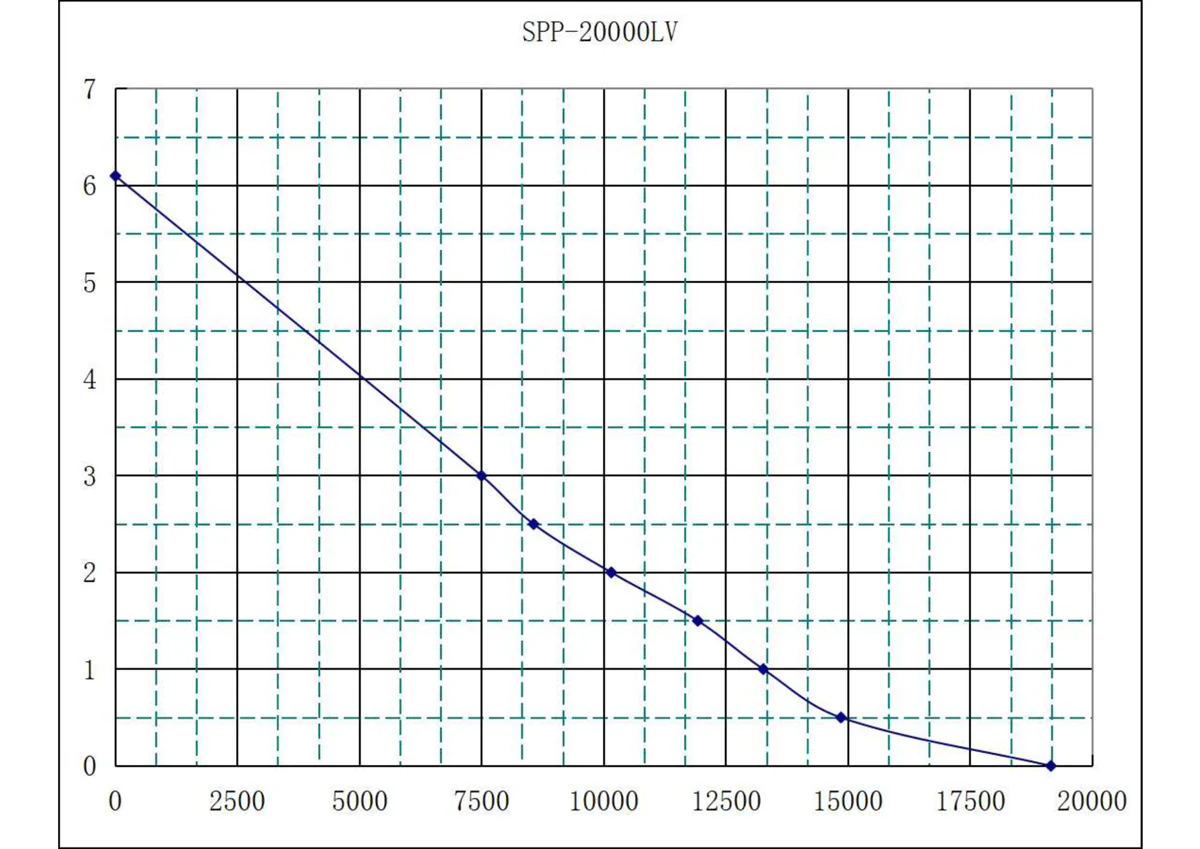

Max Head Height 6 m
Pump Dimensions 30 cm L x 13 cm W x 17 cm H
Country of Origin China
Warranty 2 years
Compatible Accessory EcoWave Check Valve Adapter (required for use with Dual Union Check Valve)

Overview

Designed specifically for recreation ponds and natural swimming pools, the ASA-20000LV fills a genuine gap in the market for a high-flow, low-voltage pump that meets safety requirements for aquatic environments where people swim. Traditional pond pumps running on 240V or even 24V are not legally permitted in these settings, making a reliable 12V option essential.

The pump uses advanced frequency conversion technology to maintain strong, consistent flow while drawing minimal power, saving up to 65% in energy costs compared to conventional alternatives. Its copper-free construction makes it safe for use in both freshwater and saltwater, and the wear-resistant ceramic shaft ensures durability even under continuous operation. The built-in IC electronic detection system monitors water levels and automatically shuts the pump off if it runs dry, protecting the motor and extending its working life.

Advice

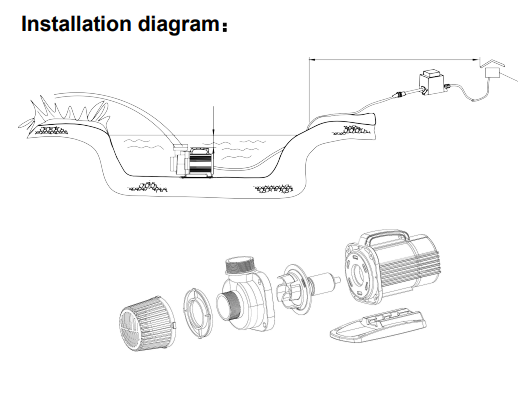

For use with the Aquascape Dual Union Check Valve, the EcoWave Check Valve Adapter is required and must be purchased separately. Ensure the pump is fully submerged before operation. The automatic dry-run protection will cut power if water is not detected, but avoiding dry running altogether will extend the life of the pump. For best results, position the pump to allow unrestricted water intake and clean the inlet screen regularly to maintain optimal flow.

Heads-up

This pump requires a compatible 12V transformer and controller; check that your power supply meets the requirements before installation. Always follow local electrical and safety regulations when installing pumps in recreation ponds or natural swimming pools.

Contact Us

Have questions about this pump or need help choosing the right setup for your recreation pond? Contact our team for personalised advice tailored to your project.
